SQUASH

Surface Mounted LED Luminaires for squash

ZCSLED3G59L840/SQUASH-ZK




    Variant

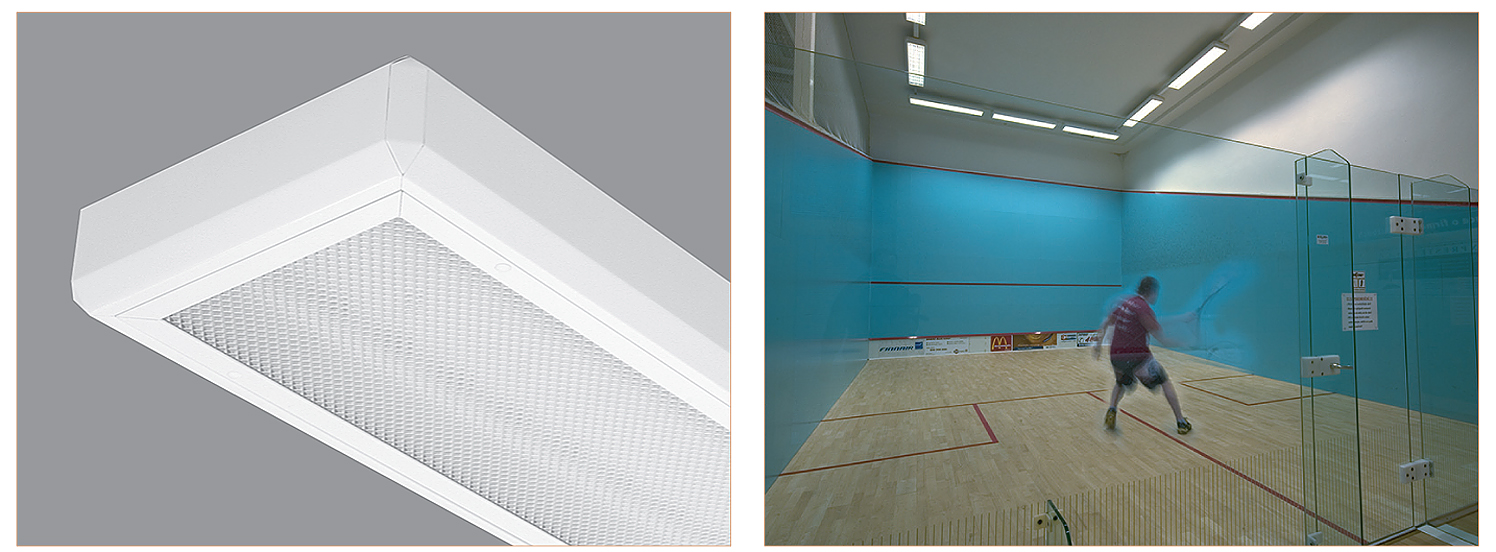

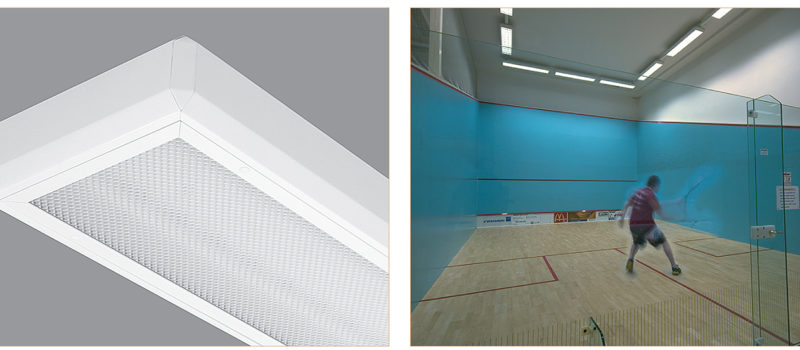

                                                            Lumianires are designed for squash courts.

                                                            The luminaire body is made of white-coated steel metal. These luminaires are designed for mounting on solid ceilings. It can be mounted directly on usual inflammable surfaces.

                                                            The optical part of the luminaire is made of a polycarbonate opal diffuser.

                                                            If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                            If it is equipped with an autonomous emergency module it is 3W/1h (250 lm).

                                                            Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                            Certified lumianires for sports facilities have been a significant part of our production program since 1993.Thanks to many successful realizations, amateur as well as professional athletes from all over the world can enjoy the sport in well-lit environment under our luminaires.

                                                            Installed LED modules in the luminaire 6x LED 12i60-840
                                                            Dimension 350 x 1555 x 85 mm
                                                            Power 59 W *
                                                            Luminous flux 5360 lm
                                                            Instalation Surface mounted

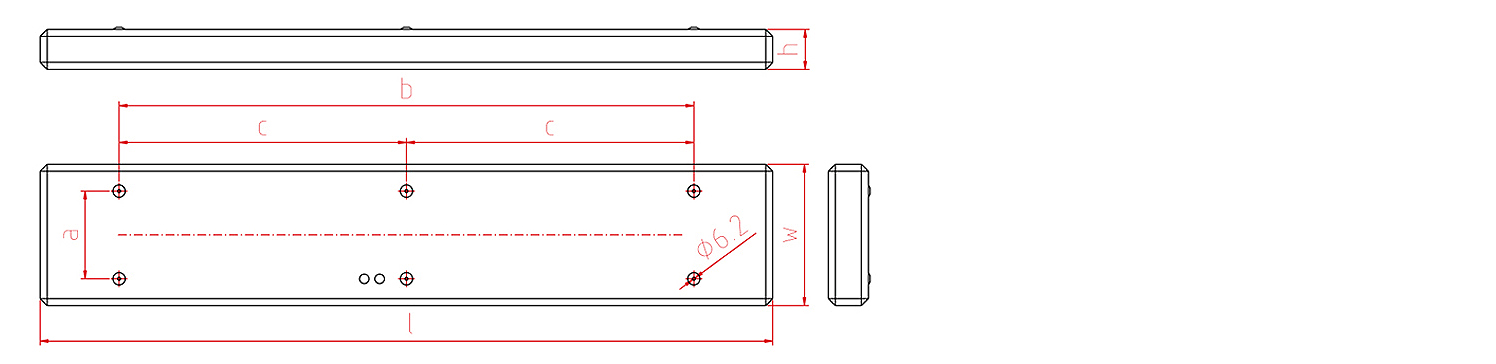

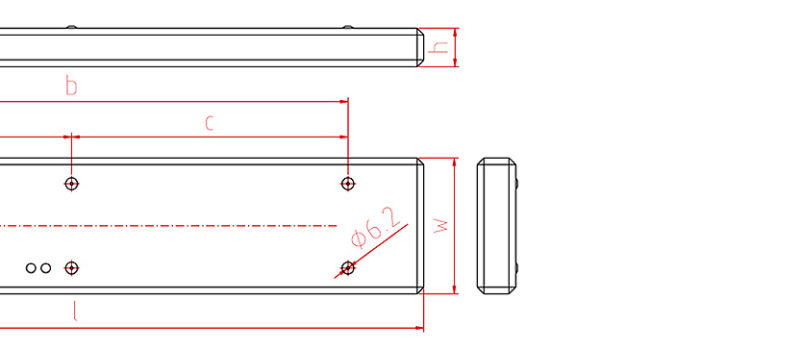

                                                            Mounting holes (AxBxC) 255x1220x610 mm
                                                            Protection IP 40
                                                            IK 9
                                                            Color rendering index CRI > 80
                                                            Light colour CCT 4000 K
                                                            Ambient temperature 25 ˚C
                                                            Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                            Weight 9 kg
