Czech LED luminaires manufacturer

BEST CLEAN M625

LED luminaires IP65 for M625 False Ceilings and Plasterboard

ZCLED4G99L840/17B-CLEAN-MK-LASER-IP65




    Variant

                                                          SKU: ZCLED4G99L840/17B-CLEAN-MK-LASER-IP65 Categories: ,

                                                          Due to their construction, the luminaires are destined for clean rooms of even the highest category (operating theaters, ICUs, production of medicines), ie for rooms with high safety requirements. Thanks to the matt glass surface, the luminaires can also be used in areas where LASER is used.

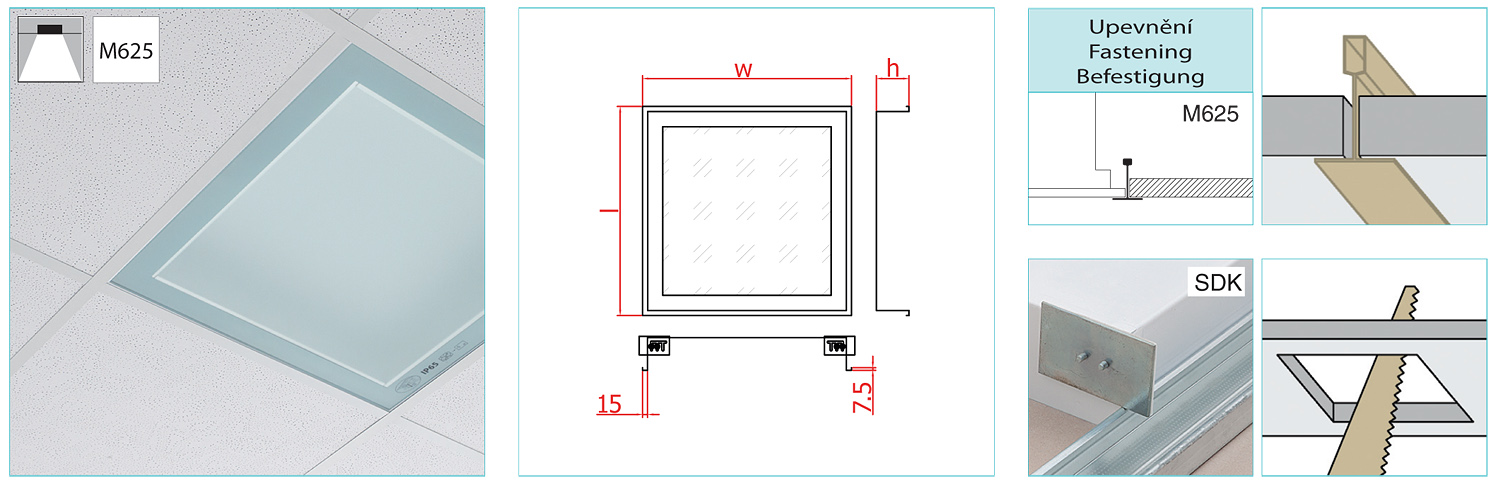

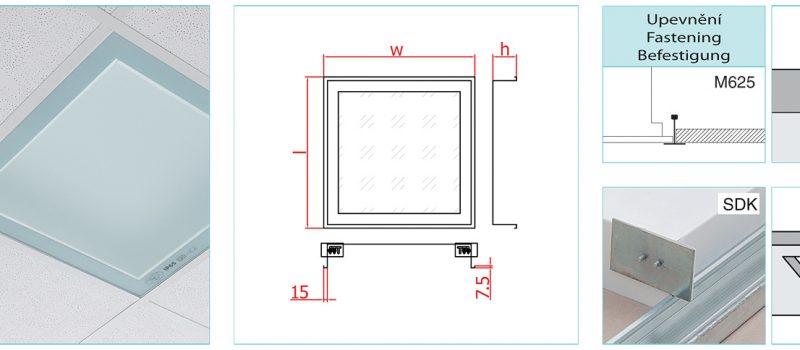

                                                          The basic body of the luminaire is made of steel sheet metal. 0.5 mm and white powder paint resistant to disinfectant and cleaning agents. Luminaires can be inserted into the classic M6625 cassette ceiling and plasterboard. To open the luminaire, it is necessary to use a suction pad (ordered separately)!

                                                          The optical cover is made of matt tempered safety glass with a microprismatic diffuser to reduce glare. This cover is attached to the luminaire using high-quality neodymium permanent magnets and fixed with safety steel cables.

                                                          If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                          If it is equipped with an autonomous emergency module it is 3W/1h (225 lm).

                                                          Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                          We have been producing luminaires for clean rooms for more than 15 years and hundreds of projects have been done. Under our lights, lives are saved in the operating theaters and medicaments are produced in clean rooms. Luminaires are also used in electronics production.

                                                          Installed LED modules in the luminaire 6x LED 15i60-840 + 3x LED 15i60-840
                                                          Dimension 310 x 1545 x 90 mm
                                                          Power 99 W *
                                                          Luminous flux 10689 lm
                                                          Instalation M625,Plasteroard
                                                          Protection IP 65
                                                          Color rendering index CRI > 80
                                                          Light colour CCT 4000 K
                                                          Ambient temperature 25 ˚C
                                                          Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                          Weight 14 kg
