TOOTH GRID

LED luminaires for Dental Surgeries

ZCLED3Gtooth155-940




    Variant

                                                            SKU: ZCLED3Gtooth155-940 Categories: ,

                                                            Illumination provided by “tooth” light fittings creates a pleasant working atmosphere in the room. On the other hand, it fulfills the values required by standards such as the value of illumination, the degree of glare restriction, and the colour rendition index.

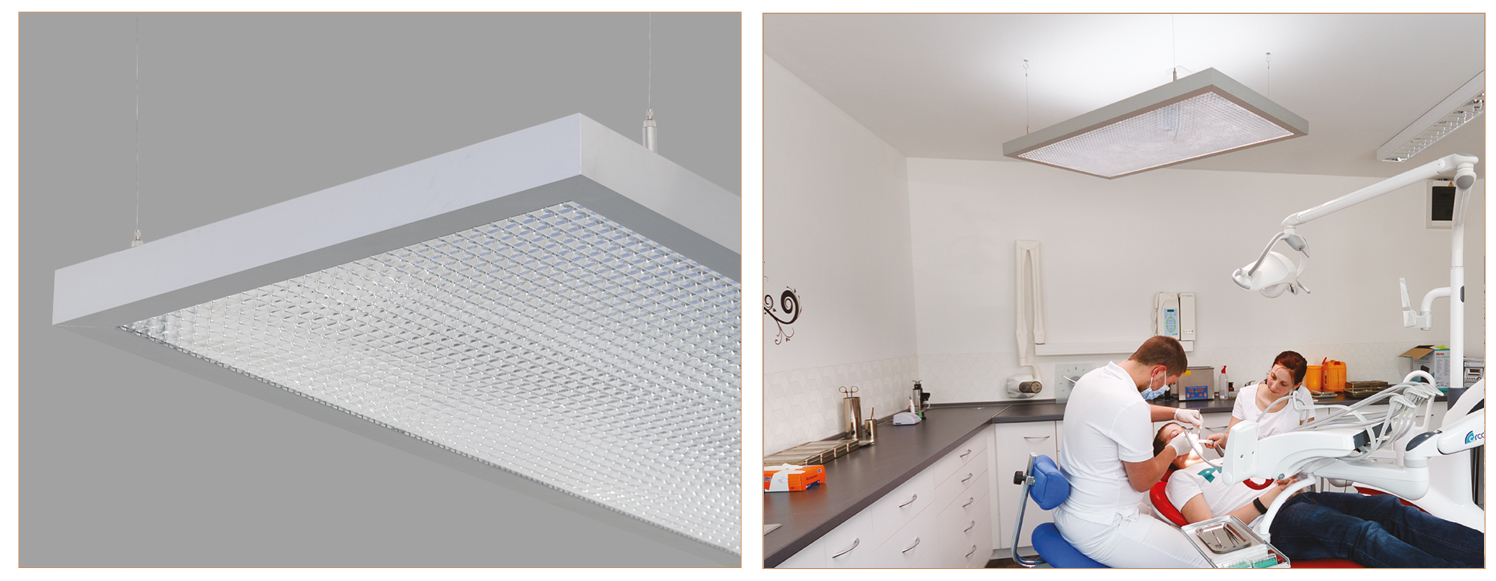

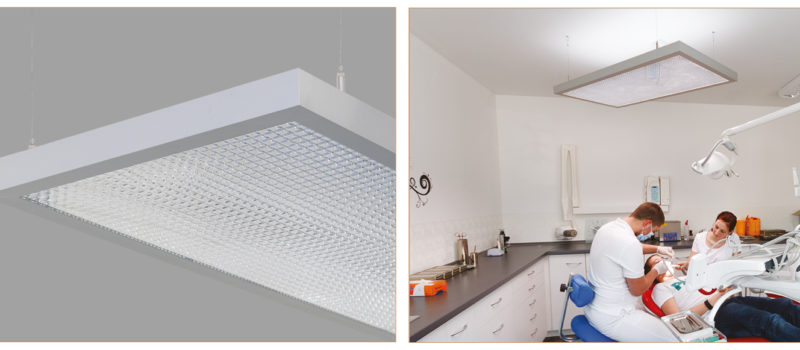

                                                            The luminaire body is made of anodized aluminum profile. Color is natural elox (gray). Luminaires are designed so that part of the luminous flux flows into the upper half-space (illuminating the ceiling), increasing the indirect lighting component, which works very pleasantly to the persons in the space.

                                                            The optical part of the luminaire consists of a metal coated raster covered with transparent acrylic glass.

                                                            If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                            If it is equipped with an autonomous emergency module it is 3W/1h .

                                                            Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                            We have been producing aluminum luminaires for dental surgeries since 2005. Currently we offer LED luminaires with GRIDOPTIC grid or microprismic diffuser.

                                                            Installed LED modules in the luminaire 10x LED 05H80-940 + 4x LED 15i60-940
                                                            Dimension 615 x 1240 x 55 mm
                                                            Power 155 W *
                                                            Luminous flux 14138 lm
                                                            Instalation Direct/Indirect,Pendant,Plasteroard
                                                            Protection IP 40
                                                            Color rendering index CRI > 90
                                                            Light colour CCT 4000 K
                                                            Ambient temperature 25 ˚C
                                                            Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                            Weight 17 kg
