Czech LED luminaires manufacturer

OPTICS

Luminaires for suspended ceilings

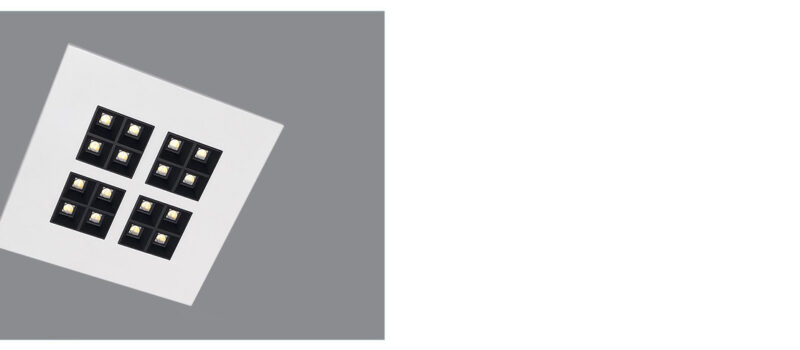

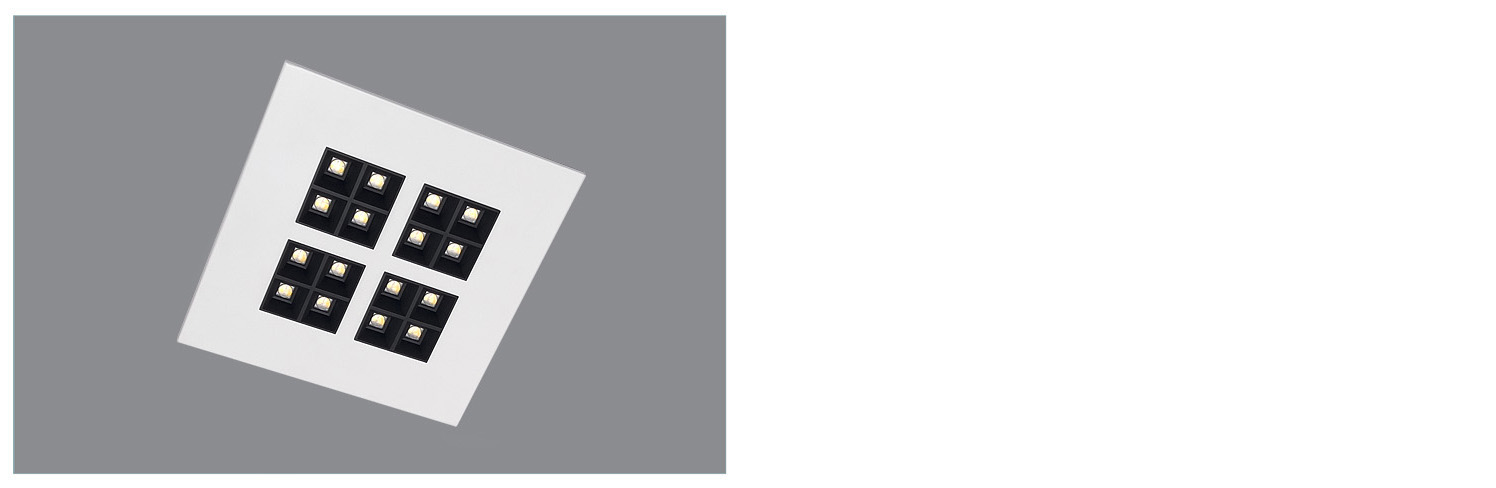

ZCLED3G4-18Q840/SDK-OPT-B




    Variant

                                                          SKU: ZCLED3G4-18Q840/SDK-OPT-B Categories: ,

                                                          The luminaire is suitable for offices, administrative premises, school classrooms and shops.

                                                          The body of the luminaire is made of steel sheet of thickness. 0,5 mm, which is coated with white powder paint. The luminaires can be mounted in plasterboard.

                                                          The optical part of the luminaire consists of a clear plastic lens complemented by a plastic grille. Thanks to the optics, we achieve less glare and even light scattering. The plastic grid is in black.

                                                          If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                          If it is equipped with an autonomous emergency module it is 3W/1h (180 lm).

                                                          Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                          We have been producing luminaires suitable for illuminating administrative areas, schools, offices and shops for over 20 years. Give your employees, students, patients and customers a well illuminated space thanks to our luminaires.

                                                          Installed LED modules in the luminaire 4x LED L2x2-840
                                                          Dimension 300x300x48 mm
                                                          Power 18 W *
                                                          Luminous flux 2070 lm
                                                          Instalation Plasteroard
                                                          Protection IP 40
                                                          Color rendering index CRI > 80
                                                          Light colour CCT 4000 K
                                                          Ambient temperature 25 ˚C
                                                          Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                          Weight 1,2 kg
