LINE LOS

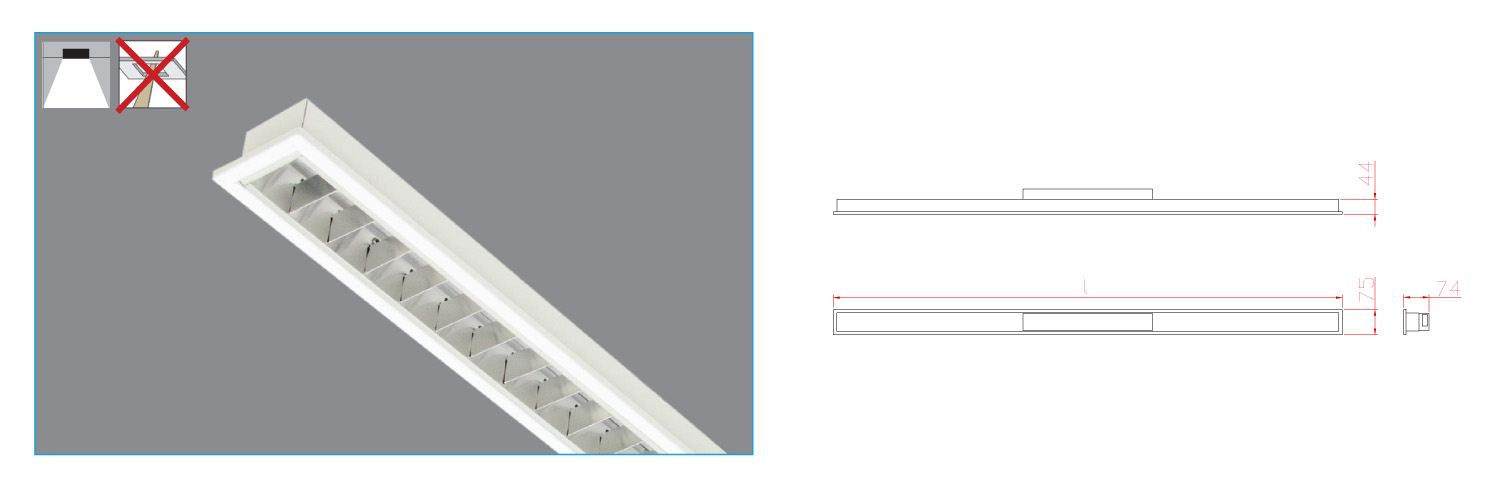

Narrow LED Luminaires for Suspended Ceiling

ZCLED3G27L840/LINE-LOS




    Variant

                                                            SKU: ZCLED3G27L840/LINE-LOS Categories: ,

                                                            Luminaires are suitable for offices, office spaces, school classes and stores.

                                                            The luminaire body is made of white-coated steel metal. These luminaires are designed for mounting on solid ceilings or suspending on wire pendants. They can be mounted directly on usual inflammable surfaces.

                                                            The optical part is made of a parabolic louvre with a diffuser to reduce glare.

                                                            If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                            If it is equipped with an autonomous emergency module it is .

                                                            Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                            We have been producing luminaires suitable for illuminating administrative areas, schools, offices and shops for over 20 years. Give your employees, students, patients and customers a well illuminated space thanks to our luminaires.

                                                            Installed LED modules in the luminaire 2x LED 15i60-840 + 1x LED 15i60_1/2-840
                                                            Dimension 75x1495x74 mm
                                                            Power 27 W *
                                                            Luminous flux 2375 lm
                                                            Instalation M600
                                                            Protection IP 20
                                                            Color rendering index CRI > 80
                                                            Light colour CCT 4000 K
                                                            Ambient temperature 25 ˚C
                                                            Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                            Weight 2,6
