Czech LED luminaires manufacturer

EASY

EASY LED luminaires

ZCLED3G2640/EASY-M625-MIKRO-C




    Variant

                                                  Luminaires are suitable for offices, office spaces, school classes and stores.

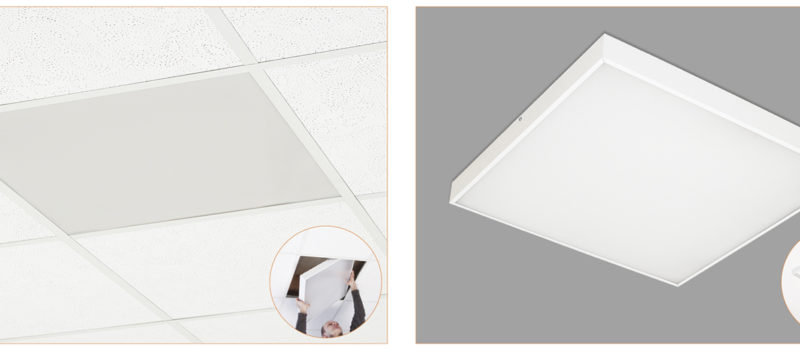

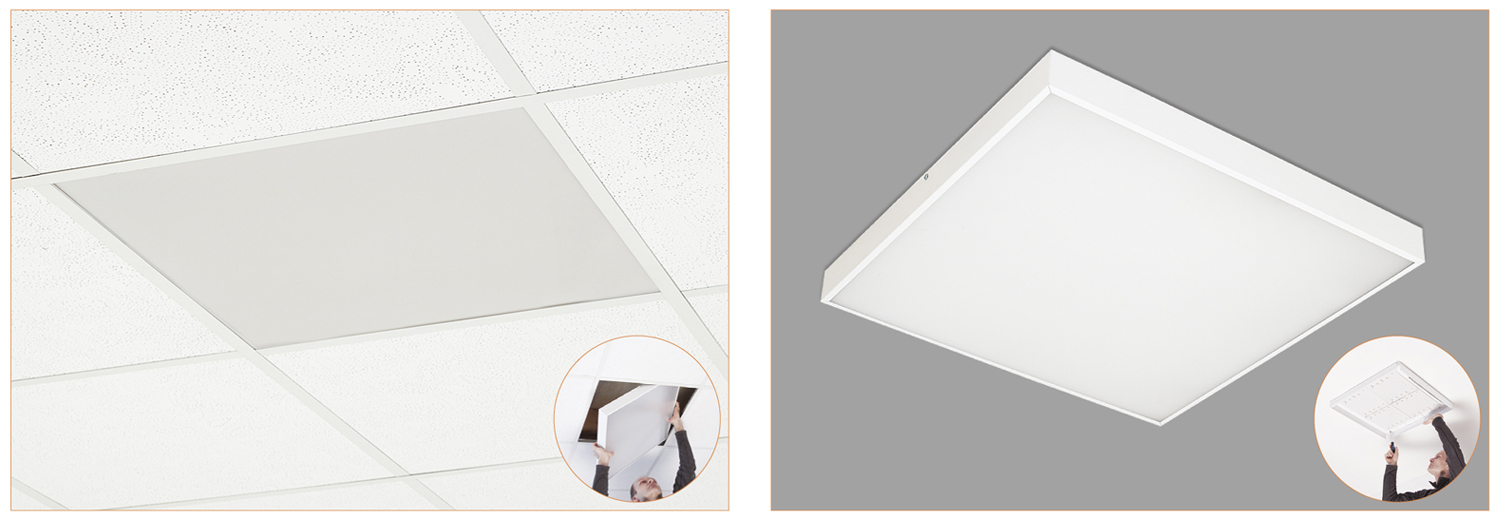

                                                  The luminaire body is made of white-coated steel metal. Luminaires can be mounted into M625 panel suspended ceilings as well as surface mounted without the need for additional accessories. For installation in plasterboard (mounting from below), a reduction frame is required. The standard color design is white RAL 9003, optional is silver-gray RAL 9006.

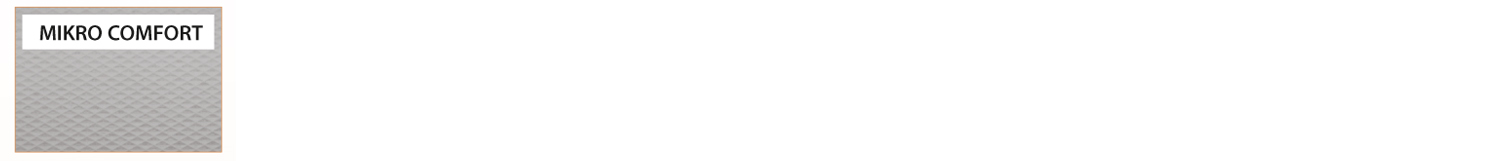

                                                  The optical part of the luminaire consists of a microprismatic diffuser creating homogeneous light without visible LED points.

                                                  If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                  If it is equipped with an autonomous emergency module it is 3W/1h (245 lm).

                                                  Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM …

                                                  We have been producing luminaires suitable for illuminating administrative areas, schools, offices and shops for over 20 years. Give your employees, students, patients and customers a well illuminated space thanks to our luminaires.

                                                  Dimension 615 x 615 x 60 mm
                                                  Power 26 W
                                                  Luminous flux 2873 lm
                                                  Instalation M625,Surface mounted

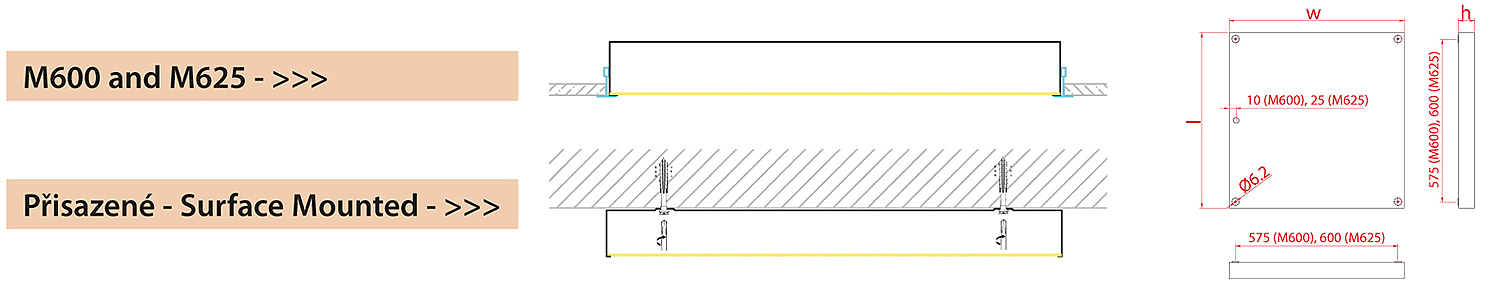

                                                  Mounting holes (AxBxC) 575x575 mm
                                                  Protection IP 40
                                                  Color rendering index CRI > 80
                                                  Light colour CCT 4000 K
                                                  Ambient temperature 25 ˚C
                                                  Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                  Weight 6 kg
