WATERPROOF

Industrial LED luminaires IP66

ZCLED3G23L840/W1,2-PC-IP66




    Variant

                                                            SKU: ZCLED3G23L840/W1,2-PC-IP66 Categories: ,

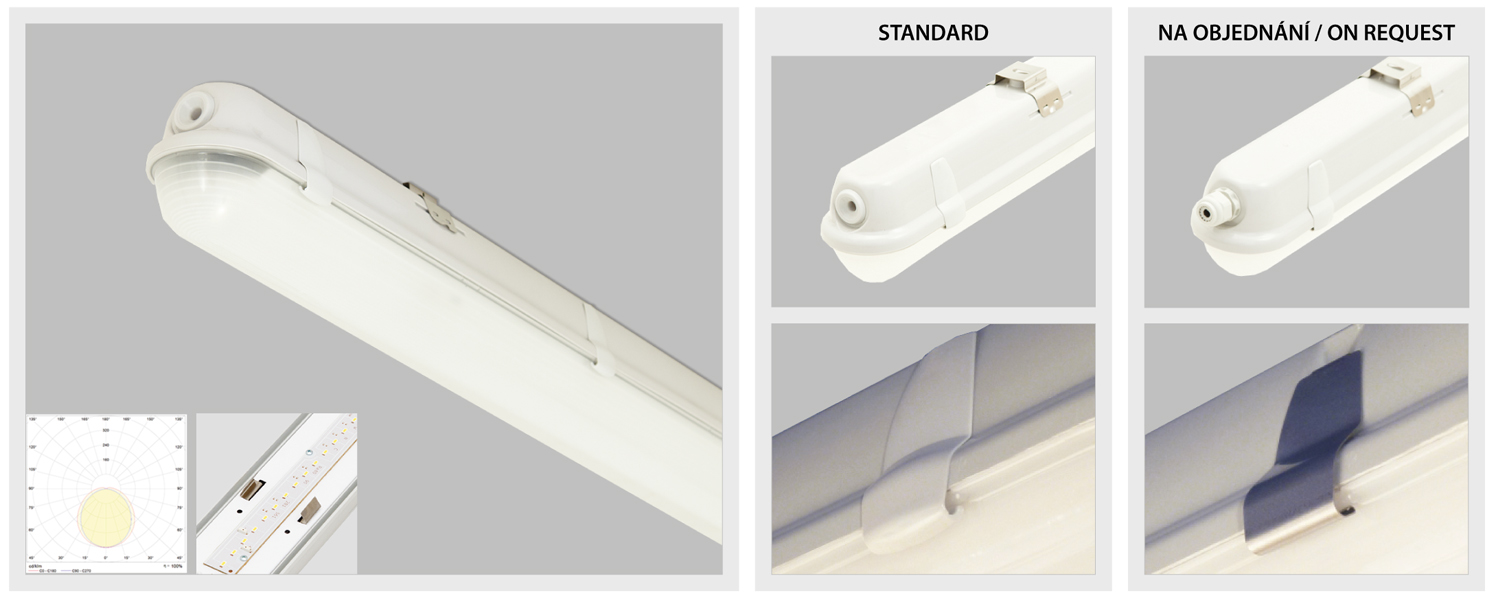

                                                            Industrial luminaires IP66 are designed for ilumination of industrial spaces, factory buildings and work house.

                                                            The luminaire body is made of gray polycarbonate (RAL 7035)

                                                            The optical part is a polycarbonate PC diffuser. The diffuser is made of UV – stabilized opalised material.

                                                            If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                            If it is equipped with an autonomous emergency module it is 3W/1h (280 lm).

                                                            Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                            For over 20 years we have been producing luminaires suitable for: automotive, industrial production, warehouses, food production, control rooms. Our world-class LED luminaires help with energy savings in many industrial buildings across Europe.

                                                            Installed LED modules in the luminaire 2x LED 12i40-840

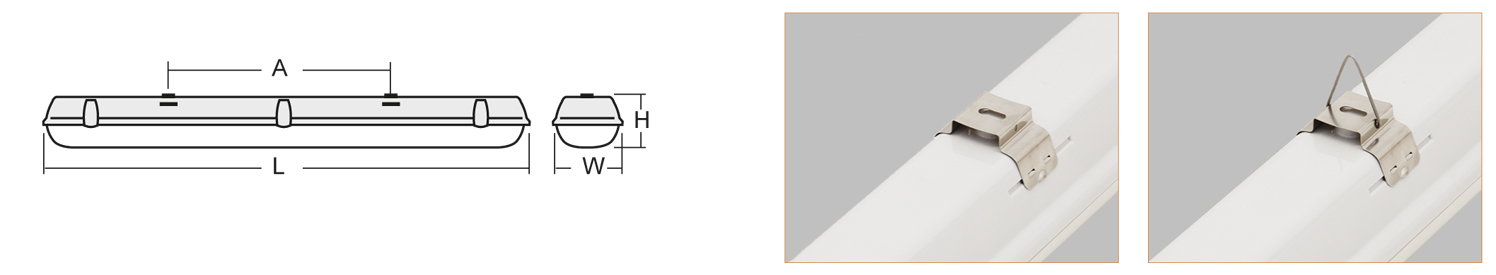

                                                            Dimension 100 x 1280 x 86 mm
                                                            Power 23 W *
                                                            Luminous flux 3170 lm
                                                            Mounting holes (AxBxC) 800 mm
                                                            Instalation Pendant,Surface mounted
                                                            Protection IP 66
                                                            Color rendering index CRI > 80
                                                            Light colour CCT 4000 K
                                                            Ambient temperature 25 ˚C
                                                            Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                            Weight 1,9 kg
