Czech LED luminaires manufacturer

UNI

Universal LED luminaires

ZCLED3G2-57L840/UNI-LOS




    Variant

                                                              SKU: ZCLED3G2-57L840/UNI-LOS Categories: ,

                                                              Luminaires are suitable for offices, office spaces, school classes and stores.

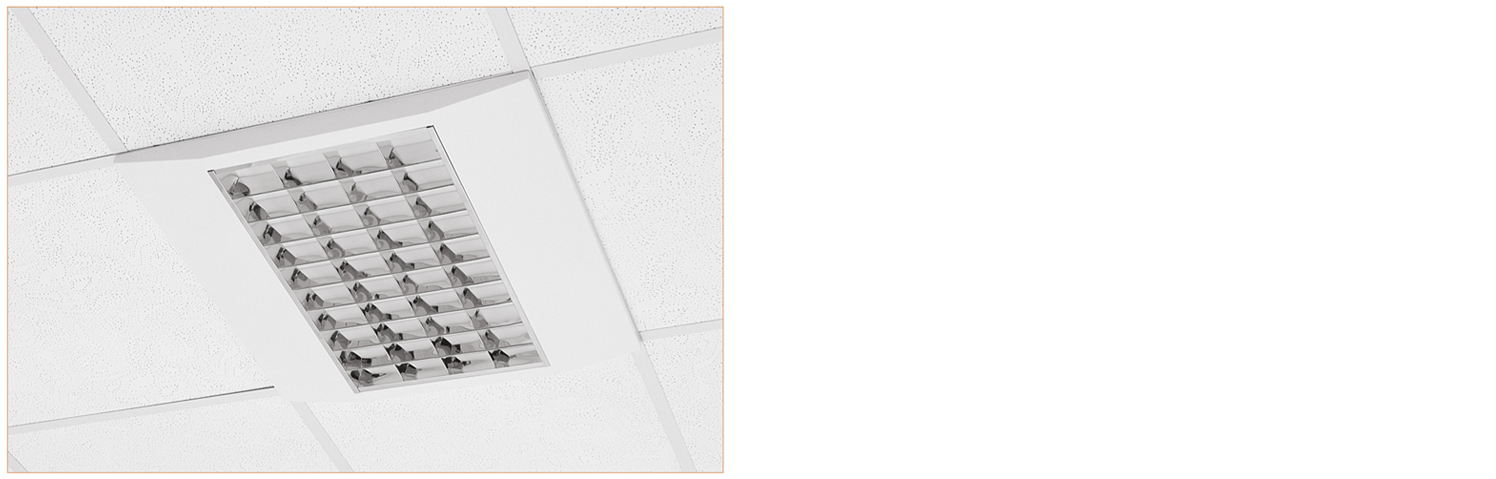

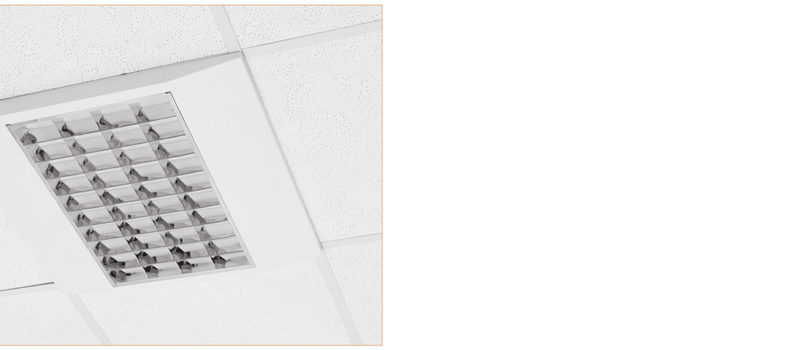

                                                              These luminaires are designed for mounting on the surface (ceiling) as well as into suspended ceilings. The UNI luminaire offers a lot of logistical advantages for the conception of the building. The standard color design is white RAL 9003, optional is silver-gray RAL 9006.

                                                              The optical part is made of a parabolic louvre with a diffuser to reduce glare.

                                                              If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                              If it is equipped with an autonomous emergency module it is 3W/1h (220 lm).

                                                              Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                              We have been producing luminaires suitable for illuminating administrative areas, schools, offices and shops for over 20 years. Give your employees, students, patients and customers a well illuminated space thanks to our luminaires.

                                                              Installed LED modules in the luminaire 4x LED 15i60-840
                                                              Dimension 410 x 1220 x 60 mm
                                                              Power 57 W *
                                                              Luminous flux 5110 lm
                                                              Instalation M600,M625,Plasteroard,Surface mounted
                                                              Mounting holes (AxBxC) 230x760 mm
                                                              Protection IP 40
                                                              Color rendering index CRI > 80
                                                              Light colour CCT 4000 K
                                                              Ambient temperature 25 ˚C
                                                              Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                              Weight 5 kg,6
