Czech LED luminaires manufacturer

ECO

ECO LED luminaires for Suspended Ceilings

ZCLED3G2-32L840/ECO-M600-MIKRO-C




    Variant

                                                          Luminaires are suitable for offices, office spaces, school classes and stores.

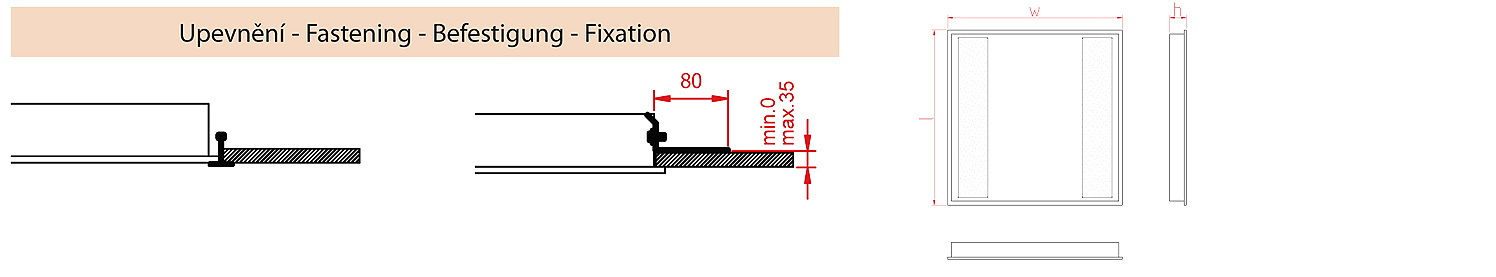

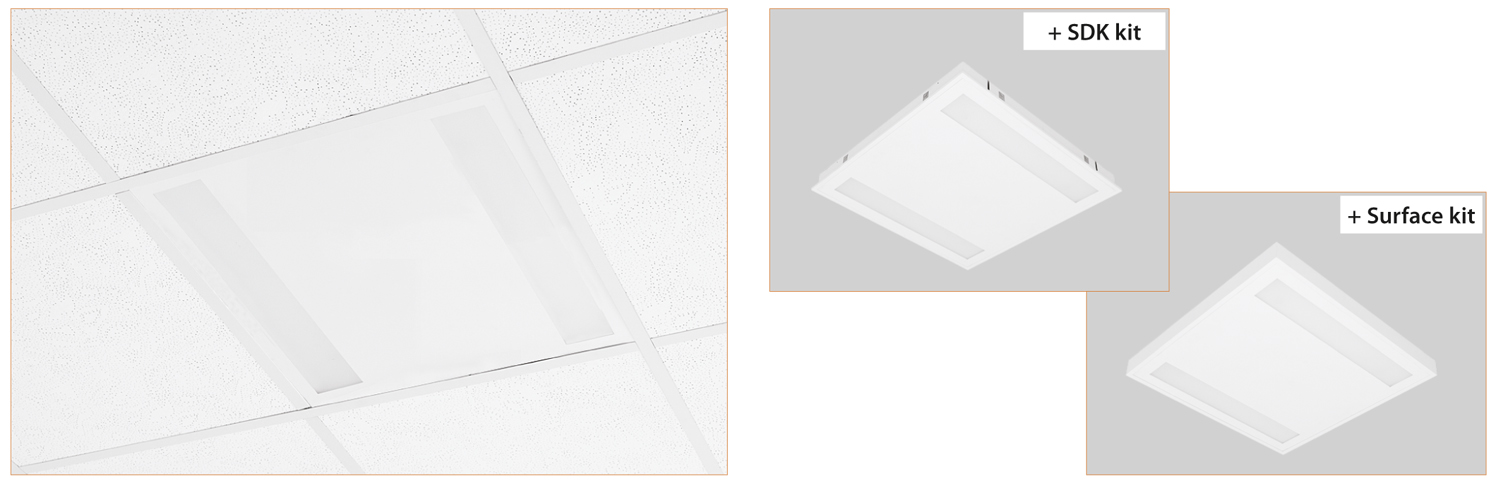

                                                          The luminaire body is made of white-coated steel metal. Luminaires can be mounted into M600 panel suspended ceilings as well as plasterboard. You need to order a mounting kit for mounting into plasterboard!

                                                          The optical part of the luminaire consists of a microprismatic diffuser creating homogeneous light without visible LED points.

                                                          If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                          If it is equipped with an autonomous emergency module it is 3W/1h (245 lm).

                                                          Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                          We have been producing luminaires suitable for illuminating administrative areas, schools, offices and shops for over 20 years. Give your employees, students, patients and customers a well illuminated space thanks to our luminaires.

                                                          Installed LED modules in the luminaire 2x LED 15i60-840
                                                          Dimension 295 x 1195 x 75 mm
                                                          Power 35 W *
                                                          Luminous flux 3590 lm
                                                          Instalation M600,Plasteroard
                                                          Protection IP 40
                                                          Color rendering index CRI > 80
                                                          Light colour CCT 4000 K
                                                          Ambient temperature 25 ˚C
                                                          Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                          Weight 5,5 kg
