Czech LED luminaires manufacturer

GOOD

LED luminaires for Production Environment

ZCLED3G17L865/HR210-OPAL-IP54




    Variant

                                                              SKU: ZCLED3G17L865/HR210-OPAL-IP54 Categories: ,

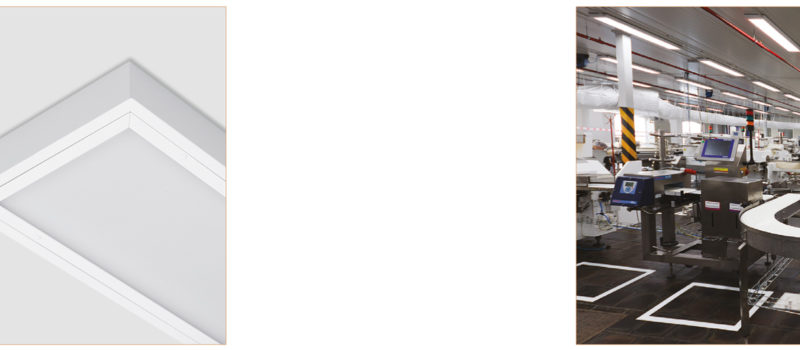

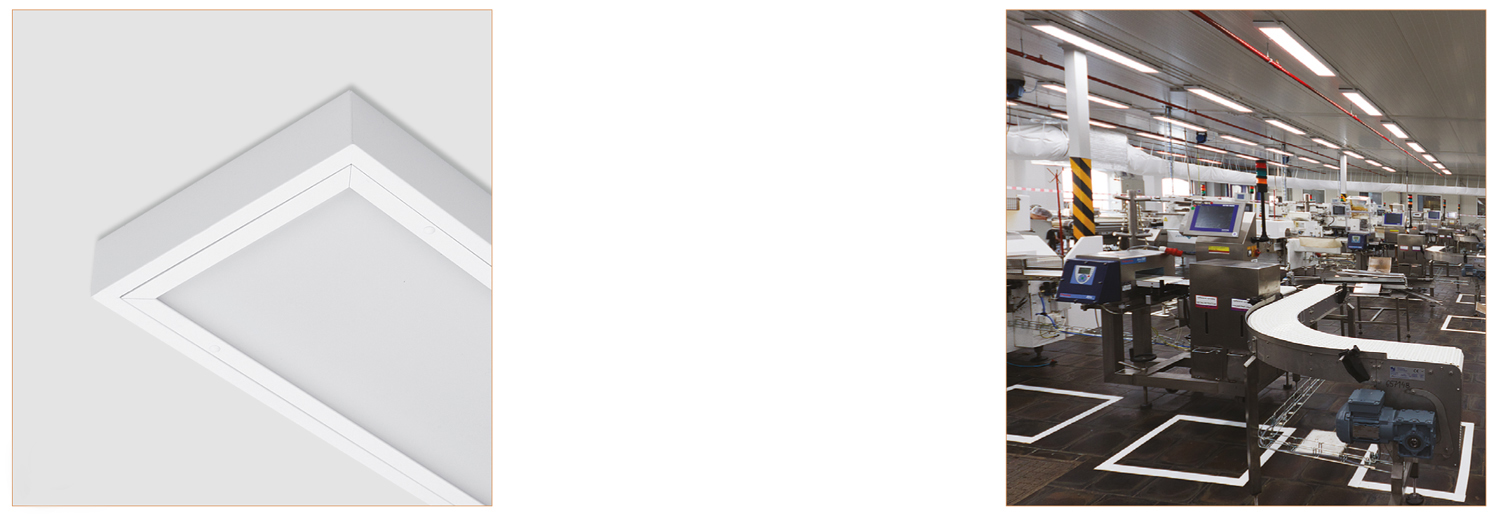

                                                              Dustproof luminaires for lighting in industry. Long service life, low energy consumption, and metal design range them among quality products.

                                                              The luminaire body is made of white-coated steel metal. These luminaires are designed for mounting on solid ceilings (it can be mounted directly on usual inflammable surfaces) or suspending on wire pendants.

                                                              The optical part of the luminaire is made of a classic opal diffuser.

                                                              If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                              If it is equipped with an autonomous emergency module it is 3W/1h (285 lm).

                                                              Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                              For over 20 years we have been producing luminaires suitable for: automotive, industrial production, warehouses, food production, control rooms. Our world-class LED luminaires help with energy savings in many industrial buildings across Europe.

                                                              Installed LED modules in the luminaire 2x LED 07i3A40-865
                                                              Dimension 210 x 705 x 60 mm
                                                              Power 17 W *
                                                              Luminous flux 1910 lm
                                                              Instalation Pendant,Surface mounted

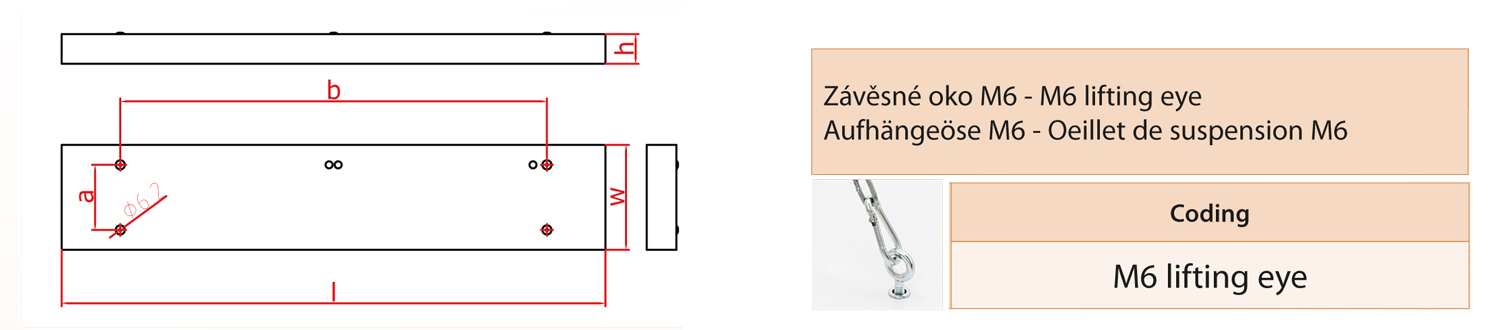

                                                              Mounting holes (AxBxC) 100x475 mm
                                                              Protection IP 54
                                                              Color rendering index CRI > 80
                                                              Light colour CCT 6500 K
                                                              Ambient temperature 25 ˚C
                                                              Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                              Weight 5 kg
