LINE

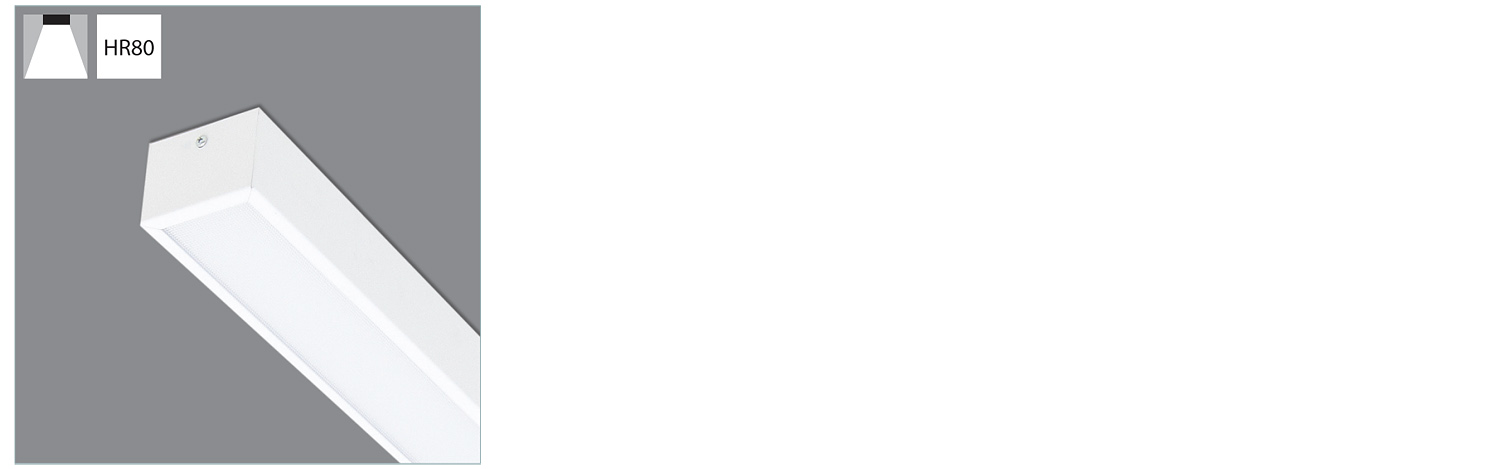

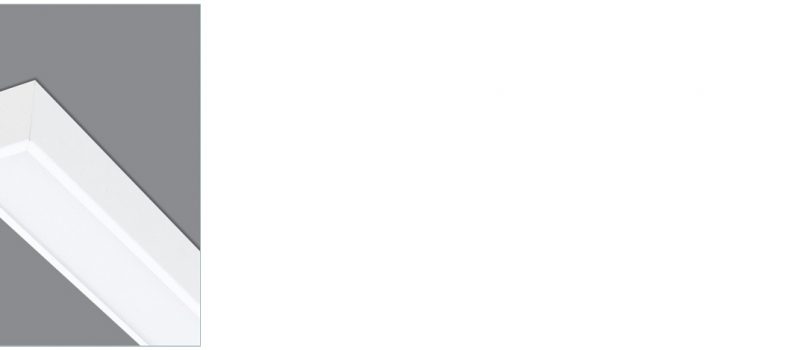

Narrow LED Luminaires for Suspended Ceiling

ZCLED3G39L840/LINE-HR-OPAL




    Variant

                                                            Luminaires are suitable for offices, office spaces, school classes and stores.

                                                            The luminaire body is made of white-coated steel metal. Luminaires can be mounted into M600 panel suspended ceilings as well as plasterboard.

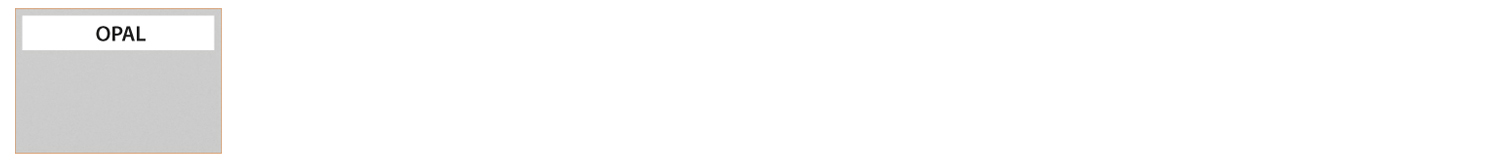

                                                            The optical part of the luminaire is made of a classic opal diffuser.

                                                            If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                            If it is equipped with an autonomous emergency module it is 3W/1h (230 lm).

                                                            Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                            We have been producing luminaires suitable for illuminating administrative areas, schools, offices and shops for over 20 years. Give your employees, students, patients and customers a well illuminated space thanks to our luminaires.

                                                            Installed LED modules in the luminaire 2x LED 12i60-840

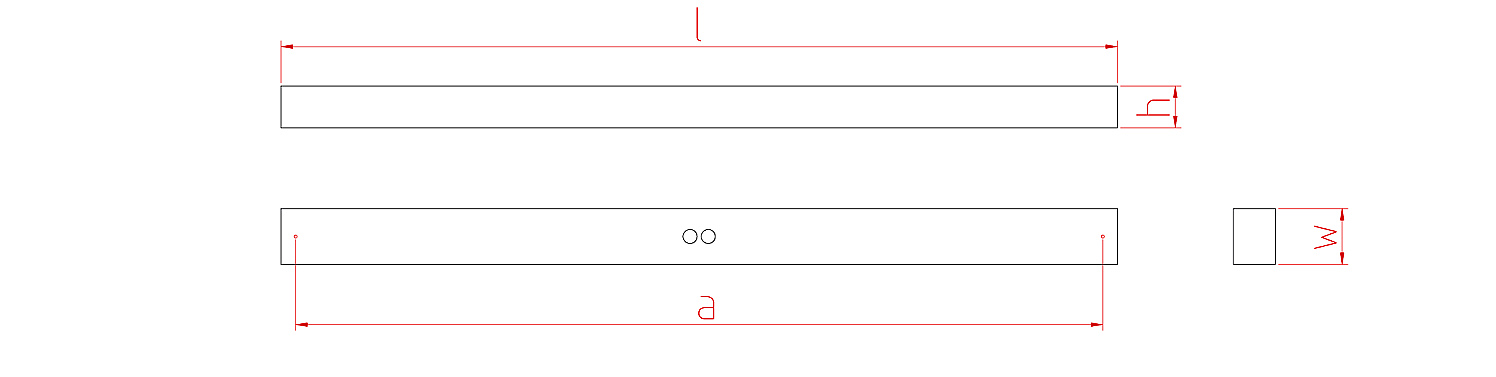

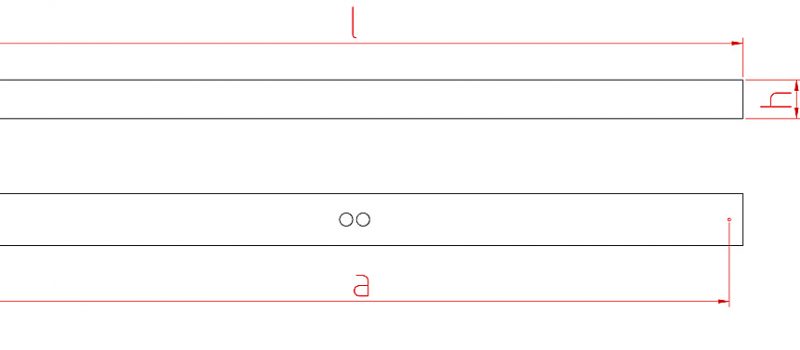

                                                            Dimension 80 x 1195 x 60 mm
                                                            Power 39 W *
                                                            Luminous flux 3725 lm
                                                            Instalation Surface mounted
                                                            Mounting holes (AxBxC) 1150 mm
                                                            Protection IP 40
                                                            Color rendering index CRI > 80
                                                            Light colour CCT 4000 K
                                                            Ambient temperature 25 ˚C
                                                            Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                            Weight 3,5 kg
