ROUND

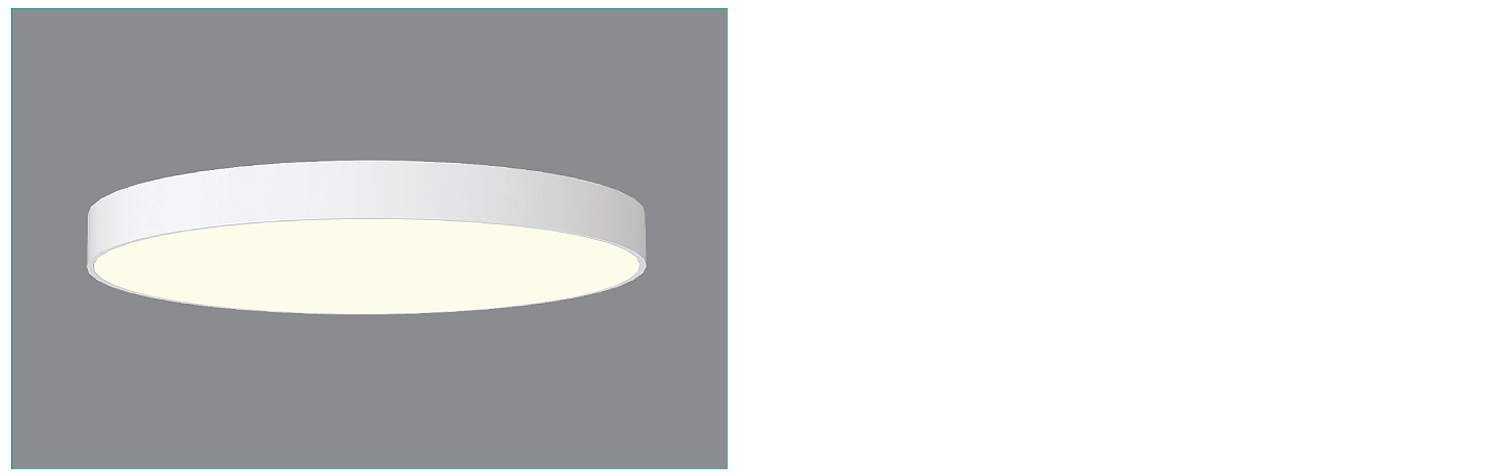

Circular luminaires, both direct/indirect

ZCLED3G25R840/R400-OPAL




    Variant

                                                        SKU: ZCLED3G25R840/R400-OPAL Categories: ,

                                                        The luminaires are suitable for lighting offices, administrative and social spaces.

                                                        The luminaires are made of aluminum profile and provided with white powder paint. Luminaires for surface mounting. It can be mounted directly on usual inflammable surfaces. In case of hanging the luminaire, it is necessary to order the “ZLR” cable suspension

                                                         The optical part of the luminaire consists of a classic opal diffuser

                                                        If the luminaire is dimmable, it is dimmable by DALI digital system.

                                                        If it is equipped with an autonomous emergency module it is 3W/1h (180 lm).

                                                        Luminaire is equipped with high quality LEDs Samsung powered by drivers only from renowned manufacturers such as Helvar, Tridonic, OSRAM, TCI. The light source and ballast in this luminaire may only be replaced by the manufacturer or his contracted service technician or similarly qualified person.

                                                        We have been producing luminaires suitable for illuminating administrative areas, schools, offices and shops for over 20 years. Give your employees, students, patients and customers a well illuminated space thanks to our luminaires.

                                                        Installed LED modules in the luminaire 2x LED R400-840
                                                        Dimension 410x80 mm
                                                        Power 25 W *
                                                        Luminous flux 3025 lm
                                                        Instalation Pendant,Surface mounted
                                                        Protection IP 40
                                                        Color rendering index CRI > 80
                                                        Light colour CCT 4000 K
                                                        Ambient temperature 25 ˚C
                                                        Lifetime LED: 50.000 h L90B20 - 100.000 h L80B50
                                                        Weight 2,5 g
